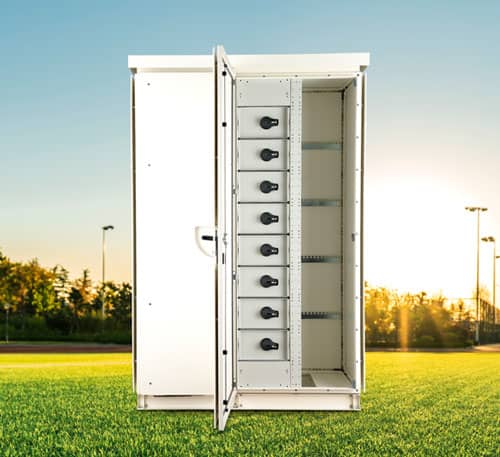

The CUBIC Outdoor Modular System allows you to move the well-known and trusted CUBIC Modular System to outdoor environments. All the benefits of the Modular System are also built in to the design of the Outdoor Modular System, including the numerous possibilities for construction of tested and verified panels, as well as the freedom to independently choose electrical components.
Adding side covers and a protection sealing effectively protects against weather conditions, corrosion, impact damage and ingress of foreign elements, making the Outdoor Modular System the optimal enclosure solution for outdoor environments.
The white RAL9010 colour used for the Outdoor Modular System provides optimal reflection of sunlight - ideal for environments with high UV radiation. The white colour also segregates outdoor parts from the grey indoor parts of the Modular System.
The Outdoor Modular System is delivered as a compact flat-pack, allowing for fast delivery and low transporting and storage costs.
The CUBIC Outdoor Modular System is based on the idea of converting the well-known CUBIC Modular System into an outdoor solution without compromising on the quality and versatility of the Modular System.
Advantages of using the CUBIC Outdoor Modular System:
■ Extremely durable in outdoor environments
■ Roof and side covers protecting approximately 95% from sun
■ Ingress protection
■ Toe-out plinth enabling easy outside mounting
■ Corrosion protected surface
■ White RAL9010 color providing optimal reflection of sunlight
■ Freedom to choose electrical components and switchgear from the component manufacturer you prefer
■ Thorough documentation – design software, technical assembly instruction, projecting.
Tested for outdoor environments
The Outdoor Modular System has been extensively tested in simulated extreme weather conditions to provide easy design verification and ensure maximum durability in outdoor environments.
To simulate extreme exposure of sunlight, the Outdoor Modular System has been tested under UV radiation according to IEC 61439-2:2020. The test included external exposure of 14.000 W of infrared light performed at present temperature rise curves of 100-1000 W, enabling easy verification of resistance to UV radiation and temperature rise limits. To test durability in extreme rainfall, the Outdoor Modular System has been submitted to ingress protection testing.
Tested with a pressure of 100 litres of water per minute, the Outdoor Modular System provides ingress protection up to IP56 and great durability in wet environments. The test enables easy verification of degree of protection according to IEC 61439-2:2020.
In addition to the extensive test program performed on the well-known indoor CUBIC Modular System, the above-described testing leaves a minimum of verification to be done by the assembler when using the CUBIC Outdoor Modular System.
Technical data
■ Colour: White RAL9010
■ Corrosion class: C4h
■ Degree of protection: IP56
■ Rated operational voltage: Up to 1000 W
■ Power loss per section: Up to 1000 W
■ Height: 10 modules
■ Depth: 3 or 4 modules
■ Width: 2-10 modules
■ Intended for outdoor use: UV resistant
■ Standard: IEC 61439-2
Move the power of modular thinking outdoors with the CUBIC Outdoor Modular System.
You can find out more here, or you can call your local NHP Account Representative or email us:
