Discover our natural evolution in premium industrial strength circuit protection, with the brand new NHP DIN-T range. Your first choice for a robust, industrial solution, our new range includes improved features for reliability, quality and safety, and has undergone extensive testing by our engineering team to ensure fit for local conditions
Transitioning to the DIN-T range is seamless, thanks to full backwards compatibility with our existing product range. We have a variety of tools and literature to support you, making installation and integration into your current setups easier than ever.
All online products will natively switch over to the new SKU when available, including for customers with saved configurations of existing DIN-T products. Our local service team is always available to help with any questions or support.
Our knowledge extends beyond point of sale, with an extensive, experienced team that you can rely on to be your trusted experts to help you with all aspects of large industrial projects.
NHP DIN-T product ranges

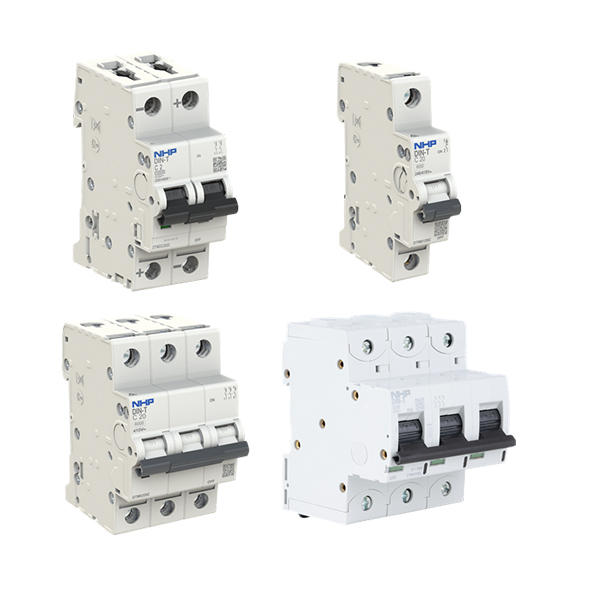

Miniature Circuit Breakers
NHP DIN-T Miniature Circuit Breakers (MCBs) are high-performance electrical protection devices offering a comprehensive range of features to meet the needs of any project. These MCBs are available in short circuit ratings of 6kA, 10kA and 50kA with current ratings from 0.5A through to 125A in variety of B, C or D trip curves. These MCBs are available in 1P, 2P, 3P and 4P housings.

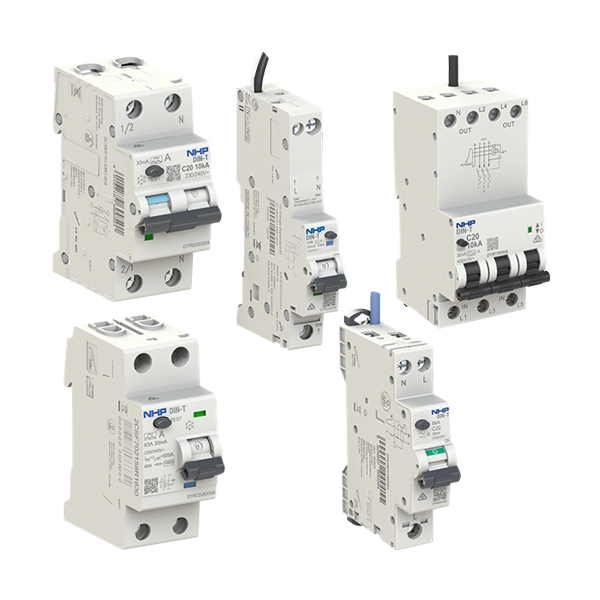

Residual Current Devices
NHP’s DIN-T range of residual current devices (RCDs) are a high-performance electrical safety solution designed for commercial, industrial and mining applications. These RCDs offer a high level of selectivity, with sensitives including 10mA, 30mA, 100mA and 300mA, and types starting at Type A for general purpose applications through to Type F and B for more complex loads.
Not sure where to start?
Product selector tool
With our new circuit protection product selector tool, it's never been easier to find the right device to suit your project. Containing our full range of products, it allows you to filter based on Device Type, Suitability for Loadcentres and Panelboards, Number of Poles, Current Rating and much more!
Go to product selector
Resources and downloads
For further information on the extensive range of DIN-T, please contact your local NHP Account Representative or call us on 1300 NHP NHP.
Frequently Asked Questions:
Portfolio changes
-
What product ranges from NHP are being introduced in the new DIN-T range?
The new DIN-T range includes an entire new improved range with performance improvements.
- Extended the 1P longbody RCBO up to 50A
- Type F longbody RCBO now available
- New 3P RCBO options up 63A
- No neutral longbody option
- Switched neutral option - Accessories
- Auxiliary alarm switch now compatible with 1P longbody RCBO
- LOCKDIN compactible with more devices
-
What does this mean for the existing DIN-T range currently available from NHP?
NHP’s existing products will continue to be available until stocks last.
-
How do I find out more about the new DIN-T solution?
NHP has made content and various assets available now on its website, including brochures, datasheets, product selectors, and various other technical literature and downloads.
-
Is the new DIN-T range backwards compatible with current DIN-T range?
Yes, the new range is backwards compatible and can be interchanged in locations where legacy DIN-T is installed.
Note:- The new range is only compatible with new accessories.
- The add-on RCD module is being replaced with 3P RCBOs options.
- The 2P RCBO neutral has switched from LH pole to the RH pole.
Ordering NHP’s existing DIN-T products
-
What is the availability of current DIN-T products?
NHP's existing range of DIN-T products will be available until stocks last at which point they will be transitioned to the new DIN-T range.
Ordering NHP’s new DIN-T products
-
When can I order the new DIN-T range?
The new range of DIN-T product is expected to be fully transitioned by 22nd April 2025.
-
Will the DIN-T part numbers be changing?
Yes, please refer to our easy-to-use migration documents to determine which item you should be transitioning to.
-
Is the price changing for the new DIN-T products?
The price is unchanged for the new and improved range.
-
Can I place forward orders for the new DIN-T products?
Forward order can be placed on any DIN-T items as they become available. The range is expected to be fully transitioned by 22nd April 2025 .
-
Will I be able to order add-on RCDs module in the new DIN-T?
The add-on RCD module is being phased out with 3P RCBOs options as a replacement.
-
Can I ensure that my order contains only the new DIN-T range for install in a new board?
The range is expected to be fully transitioned by 22nd April 2025 at which time the full range of the new DIN-T can be used in your assemblies. The new range is backwards compatible and can be interchanged in locations where legacy DIN-T is installed.
Technical and Product Support
-
Is the new DIN-T compliant in Concept panelboards?
Yes, Concept distribution panelboards are designed verified with the new DIN-T range.
-
Can I use my current range of accessories with the new DIN-T range?
No, the legacy range of accessories (shunt trips, UVT, auxiliaries and LOCKDIN) are not compatible with the new DIN-T range, and the new DIN-T range of the same accessories are not backwards compatible with the legacy DIN-T range of products.
-
Is the new DIN-T range compatible with MOD6+ distribution panelboard?
No, DIN-T is not design verified to suit MOD6+ distribution panelboards. The new DIN-T range, as per the current DIN-T range are design verified to suit the Concept panelboard range; Concept Plus, Concept Premier and Concept Tough.
