Finder 12 Series digital time switches
The Finder 12 series digital time switches are designed not only for easy setup and use, but also to provide intelligent, accurate and reliable timing control of applications. The range incorporates 35mm wide units with NFC (Near Field Communication) Technology which enables the user to program/configure the time switch units via a smartphone or tablet and similarly read values from the timers. You also have the option of using the onboard joystick to program/configure the time switch units if that’s your preference. This NFC range incorporates weekly model types including ‘Astro’ program variants. The Finder 12 series also includes 17.6mm wide ‘SLIM’ units (non-NFC) in case you’re looking for space savings in the panel
Product Range Features
- Two programming modes: “Smart” mode via smartphone/Tablet with NFC communication (35mm wide units only) or “Classic” mode via the onboard joystick
- Supply voltage options: 12-24 V AC/DC, 24V AC/DC, 110-230V AC/DC, 230V AC
- Functions:
- Astro program: calculation of sunrise and sunset times through date, time, and location coordinates (select models)
- Switch ON/Switch OFF with a minimum interval setting of 1 minute
- Pulse from 1 second to 59 minutes
- LCD status indication, set-up and programming
- Internal battery for set-up and programming without supply, easily replaceable
- Large number of Memory Locations
- Automatic adjustment for daylight saving
- Lock with a 4-digit PIN (NFC 35mm models only)
- Wide backlit display
- 17.6 and 35mm wide units
- DIN rail (35mm) mount units
Product range
Digital weekly ‘Astro’ time switches w/NFC
Types DGTA1* and DGTA2* are weekly time switches that can calculate the sunrise and sunset times according to location coordinates (latitude/ longitude) and timezone set.
Functions:
- Astro ON/Astro OFF
- Switch ON/Switch OFF
- Pulse from 1 second to 59 minutes
- Holiday program
- Location coordinates easily set
- Offset function - allows the switching times to be advanced/delayed from the astronomic time (by up to 90 min, in 1 min steps)
- Astro/ON and Astro/OFF function is preset on channel A
- 35mm width
Applications
Municipal lighting (street, squares, monuments,
fountains etc.), gardens, parking, shops, illuminated
signs, irrigation systems, heating and cooling plants.
View Part Numbers
DGTA2024NFC
DGTA1230NFC
DGTA2230NFC
Digital weekly time switches w/NFC
Types DGT1* and DGT2* are suitable for load control at specific times and for specific days of the week.
Functions:
- Switch ON/Switch OFF
- Pulse from 1 second to 59 minutes
- Holiday program
- 35mm width
Applications
Irrigation systems, heating and cooling plant, shops,
illuminated signs, access (door) control
View Part Numbers
The new Finder 12 series with NFC time switches allows users to program and configure the time switch unit on the smartphone/ tablet via the free to download “Finder Toolbox NFC” App.
Digital weekly 'SLIM' time switches
The DGT 'SLIM' time switches are 17.6mm wide and used in applications with compact panel space. These units are programmed/configured using the buttons on the face of the unit. Since they do not have NFC capability, they cannot be programmed via smartphone and tablets.
Functions:
- Switch ON/Switch OFF
- Pulse from 1 second to 59 minutes
- Holiday program
- 17.6mm width
Applications
Irrigation systems, heating and cooling plants, shops, illuminated signs, access (door) control
View Part Numbers
DGT1230SLIM
DGT1024SLIM
Resources and downloads
For further information on Finder 12 Series Digital Time Switches;
please download the documents below or contact your local NHP representative on 1300 NHP NHP.
-

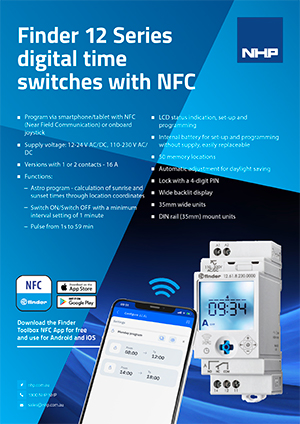

Product Flyer
-
Technical data
-
Instruction Manual
Technical datasheet
12 SERIES Time switches 16 A
Technical datasheet
Selection Chart
Finder 12 Series digital time switches with NFC
Easy selection chart
