SMART MV Kiosk Substations
NHP customer oriented engineered approach in Medium Voltage offering advanced safety features along with long-term reliability and maximised up-time.
-
Substation Solutions
NHP has been supplying a range of customized prefabricated SMART MV/LV substation solutions up to 22kV and up to 2.5MVA into the Australian and New Zealand markets since 2012.

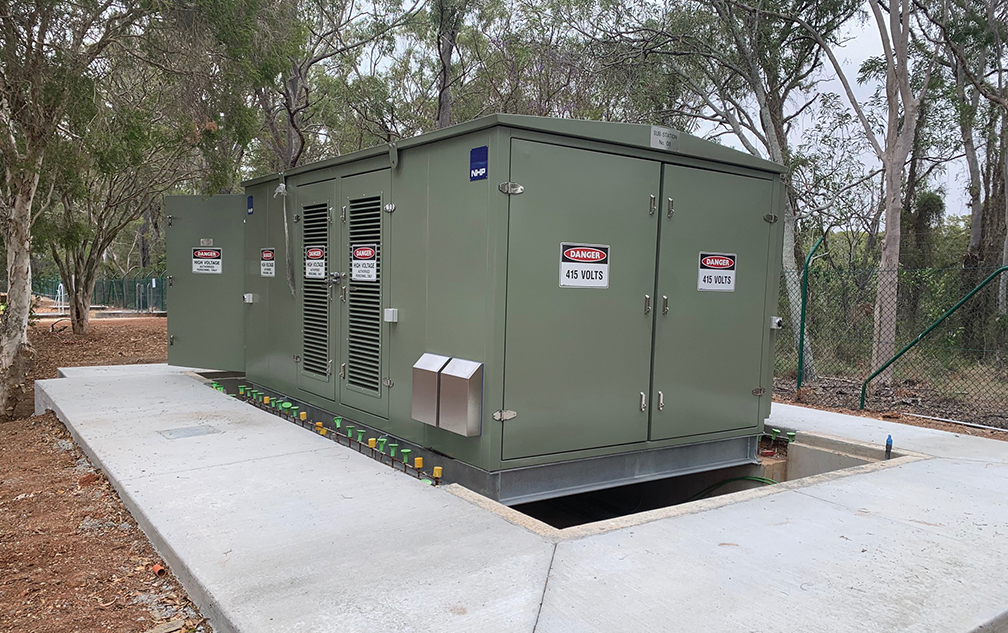

NHP MV prefabricated kiosk substations are engineered to suit customer specification and application requirements and can house a variety of HV and LV equipment. NHP MV Kiosks are designed and manufactured locally by our partners as per NHP specifications and have to pass final quality inspection and FAT to a complete satisfaction of our own QA department, as well as our customers.
Typical configurations of NHP MV Kiosks include:
- MV/LV Kiosk Substation with:
- MV modular AIS Switchgear (DF2) or RMU,
- Cast Resin or Oil Immersed Transformer
- SMART Cubic LV switchboard with NHP/Terasaki circuit breakers and other LV equipment as required (UPS, HMI, Metering, etc)
- Air insulated modular MV switchgear (DF2) in outdoor enclosures
- Cast Resin Transformers in Outdoor Enclosures with or without LV switchboard
Customer base
- Australian Defence bases
- Water and wastewater
- Australian Correctional facilities
- Food industry
- Oil & Gas
- Mining & quarries
- Heavy Steel Fabrication industry
- Cement quarries
- Major infrastructure and many more.
-
Key Components
-

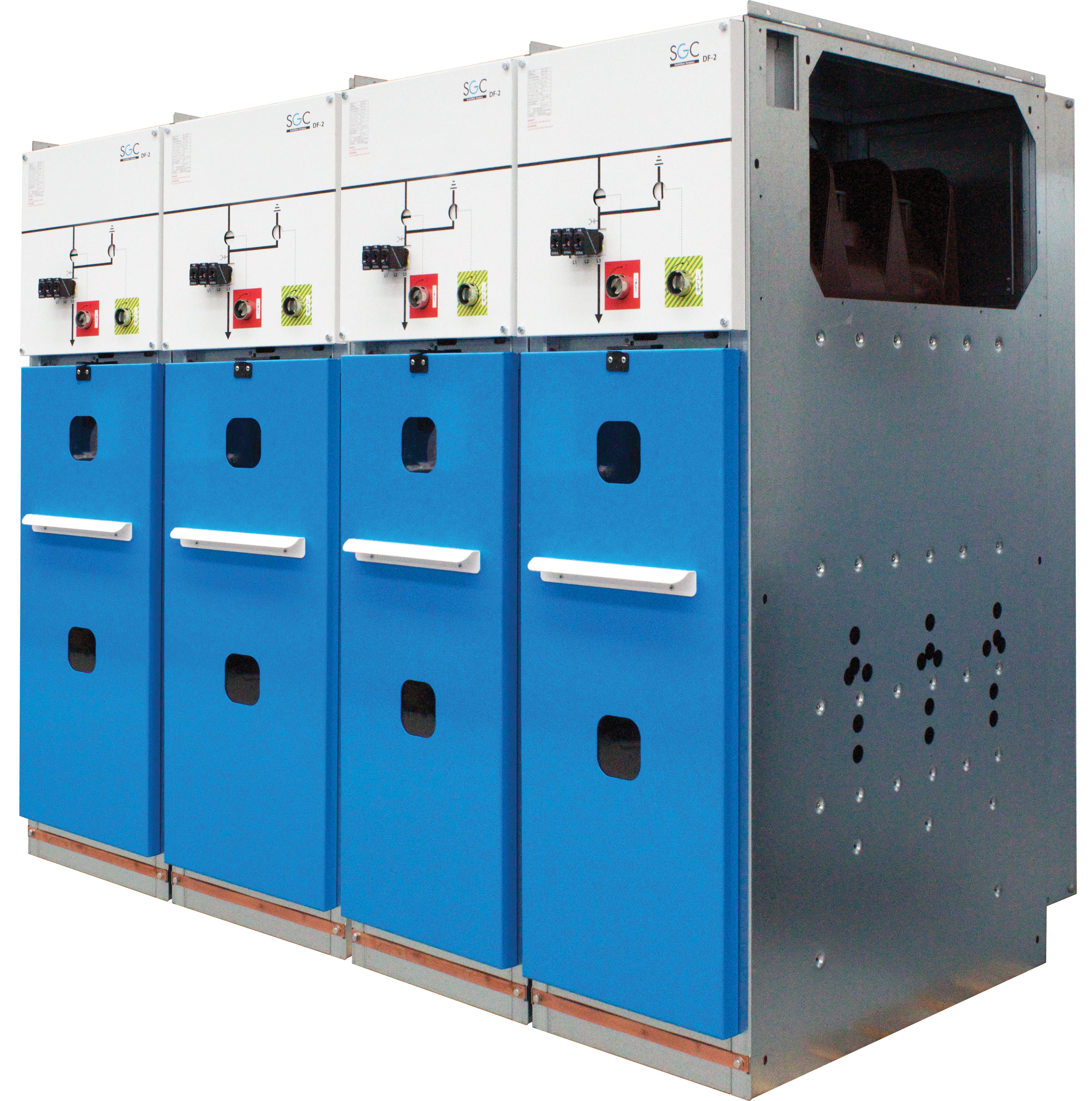

NHP DF-2 & DF-2+ Fixed Air Insulated Switchgear with De-mountable Vacuum CB
-

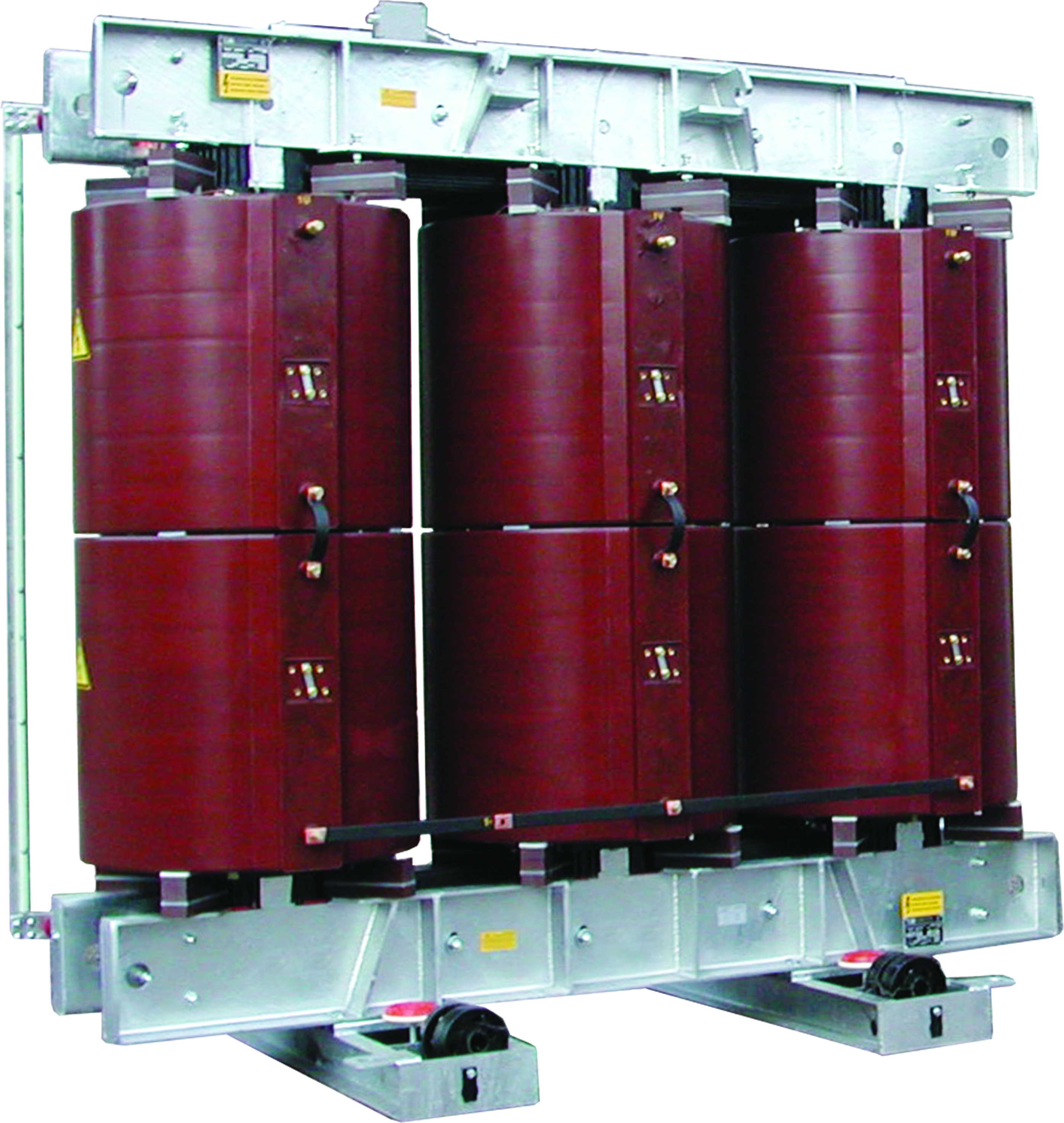

NHP Cast Resin Transformers
-

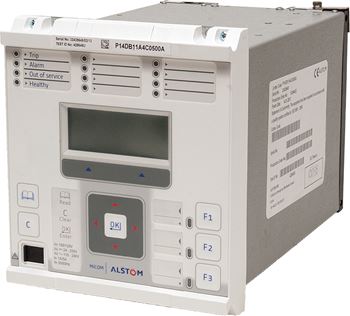

Agile Protection Relays
