NHP NLINE

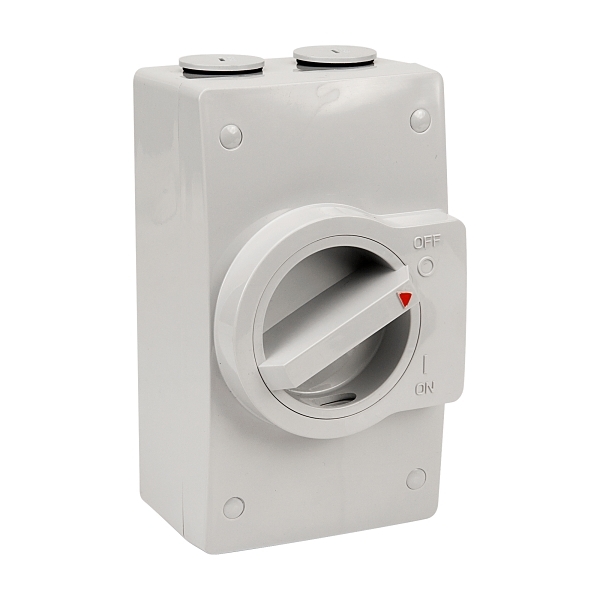

NHP NLINE Isolating Switch, Large IP 66 Plastic, 3 Pole 40A 500V AC
Item No. NL340L
Product Range: NLINE Weatherproof Isolators
Component Type (ETIM Class)
Switch disconnector
Electrical
Rated operating voltage Ue500 V
Rated permanent current Iu40 A
Number of poles3
M ratingM180
Rated operation current Ie at AC-23a, 500 V16 A
Rated operating voltage500 V
Construction
Material housingPlastic
Colour control elementGrey
Degree of protection (IP), front sideIP66
Version as reversing switchNo
Suitable for floor mountingNo
Dimensions
Height165 mm
Width95 mm
Depth91 mm
Weight0.5 kg
Conductor cross section solid (solid, stranded)6-16 mm²
