Terasaki

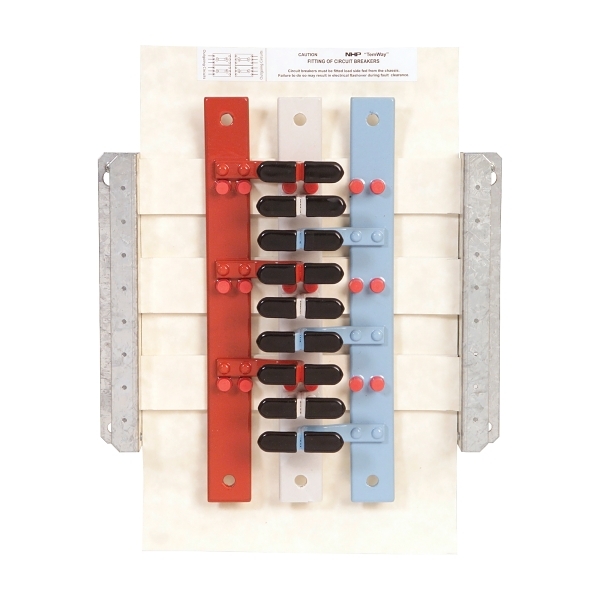

NHP Terasaki TemBreak 2 TemWay XA Chassis 630A 12 Way
Item No. XA63012U
Product Range: XAP
Component Type (ETIM Class)
Distributor assembly busbars
Electrical
Rated current630 A
Number of poles12
Number of phases input3-phase
Nominal voltage690 V
Short time withstand current Icw, 0.5 sec40 kA
Short time withstand current Icw, 1 sec36 kA
Construction
Assembly arrangementNC REED switch
Dimensions
Height380 mm
Depth110 mm
Height (pan)180 mm
