Socomec

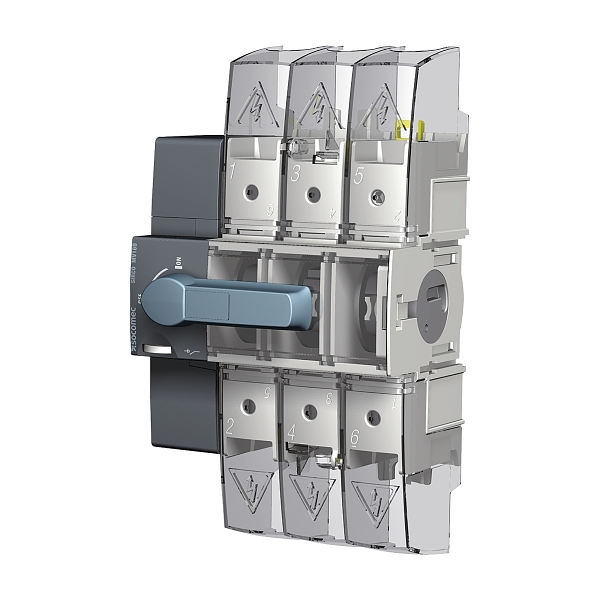

Socomec VLBM Visual Load Break Switch Kit, w/ External Handle, 3P 125A
Item No. VLBM1253P
Product Range: VLBM
Component Type (ETIM Class)
Switch disconnector
Electrical
Rated permanent current at AC-21, 400 V125 A
Rated permanent current Iu125 A
Number of poles3
Rated operation power at AC-23, 400 V55 kW
Rated operation current Ie at AC-23a, 400 V125 A
Rated operation current Ie at AC-23a, 500 V80 A
Rated operation current Ie at AC-23a, 690 V80 A
Rated operation current Ie at DC-23a, 220 V63 A
Rated short-time withstand current lcw7 kA
Construction
Degree of protection (IP), front sideIP65
Version as main switchYes
Version as reversing switchNo
Number of switches1
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Mechanical
Padlock lockingYes

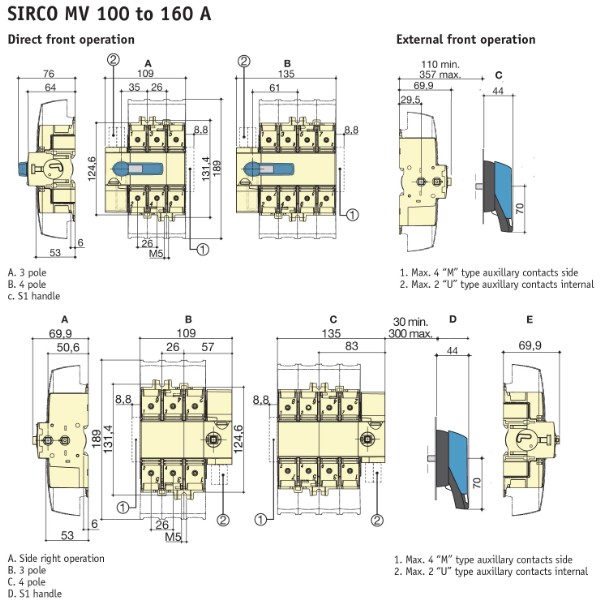

Dimensions
Height131.4 mm
Width109 mm
Depth69.9 mm
Weight0.7 kg
Conductor cross section solid (solid, stranded)10-70 mm²
Connectable conductor cross section10-70 mm²
