IME

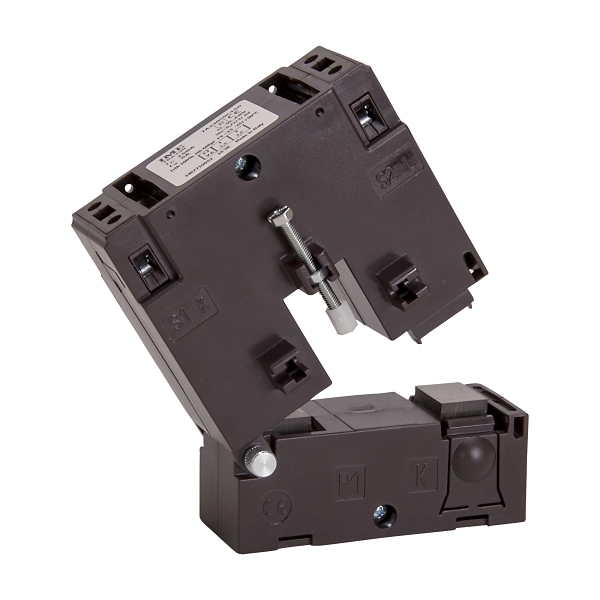

IME TRA230 Split Core Current Transformer 60A/5A 30 x 20mm 1VA Class 3

Item No. TRA230605A
Product Range: SVG Floor Standing
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current60 A
Secondary rated current5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)3.6 kA
Rated continuous thermal current Icth (x primary current)3.6 kA
Accuracy class3
Insulation class (IEC 61869-1, 61869-2)B
Security factor15
Construction
Current transformer typeSplit core
ModelThrough-feed current converter
With shock protectionYes
Snap mountingNo
Secondary connectionScrew connection
Number of primary inputs1
Environment
Storage temperature-40-85 °C
