  1. Current Transformers and Transducers

IME

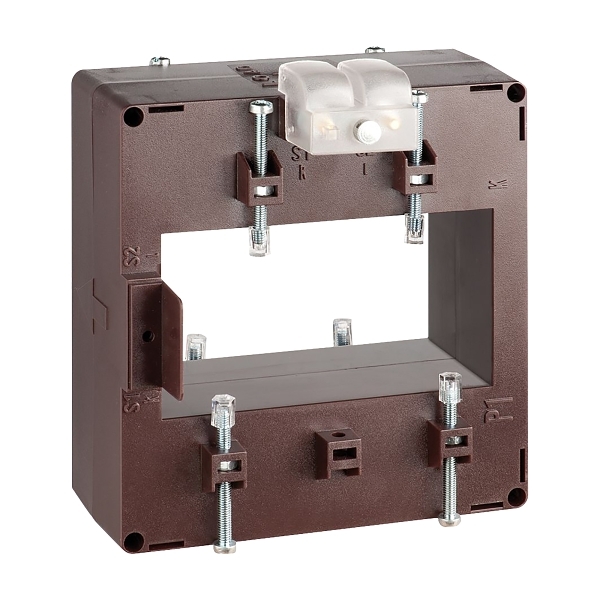

IME TAS102 Solid Core Protection CT 1000A/1A 102 x 54mm 5VA Class 5P10, 12VA Class 5P5

Item No. TAS102BP10001A
Product Range: Solid Core CT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current1000 A
Secondary rated current1 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)60 kA
Rated continuous thermal current Icth (x primary current)60 kA
Accuracy class5
Insulation class (IEC 61869-1, 61869-2)B
Power loss30 W
Construction
Current transformer typeSolid core
Material housingPolycarbonate (PC)
ModelAttachable current transformer
With shock protectionYes
Snap mountingYes
Secondary connectionScrew connection
Number of primary inputs1
Environment
Storage temperature-40-85 °C
