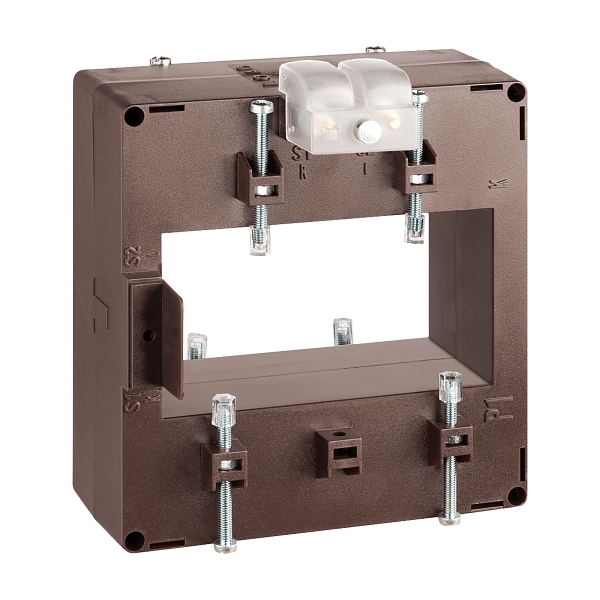

IME TAS102 Solid Core Current Transformer Horizontal 1200A/5A 102 x 54mm 20VA Class 1 15VA Class 0.5
Item No. TAS102BH12005A
Product Range: Solid Core CT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current1200 A
Secondary rated current5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)72 kA
Rated continuous thermal current Icth (x primary current)72 kA
Accuracy class0.5
Insulation class (IEC 61869-1, 61869-2)B
Rated burden, class 0.515 VA
Construction
Current transformer typeSolid core
Material housingPolycarbonate (PC)
ModelAttachable current transformer
With shock protectionYes
Snap mountingYes
Secondary connectionScrew connection
Number of primary inputs1
Environment
Storage temperature-40-85 °C
