  1. Current Transformers and Transducers

IME

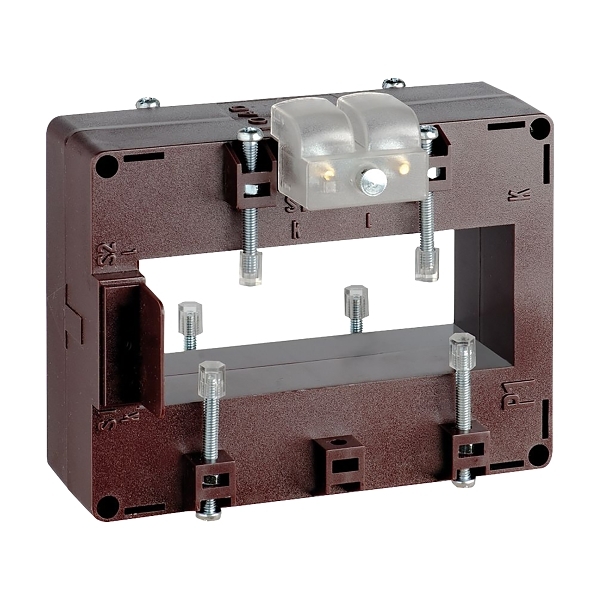

IME TAS102 Solid Core Current Transformer 2000A/5A 102 x 38mm 25VA Class 1, 20VA Class 0.5

Item No. TAS10220005A
Product Range: Solid Core CT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current2000 A
Secondary rated current5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)90 kA
Rated continuous thermal current Icth (x primary current)90 kA
Accuracy class0.5
Insulation class (IEC 61869-1, 61869-2)B
Rated burden, class 0.520 VA
Construction
Current transformer typeSolid core
Material housingPolycarbonate (PC)
ModelThrough-feed current converter
With shock protectionYes
Snap mountingNo
Secondary connectionScrew connection
Number of primary inputs1
Environment
Storage temperature-40-85 °C
