STEGO

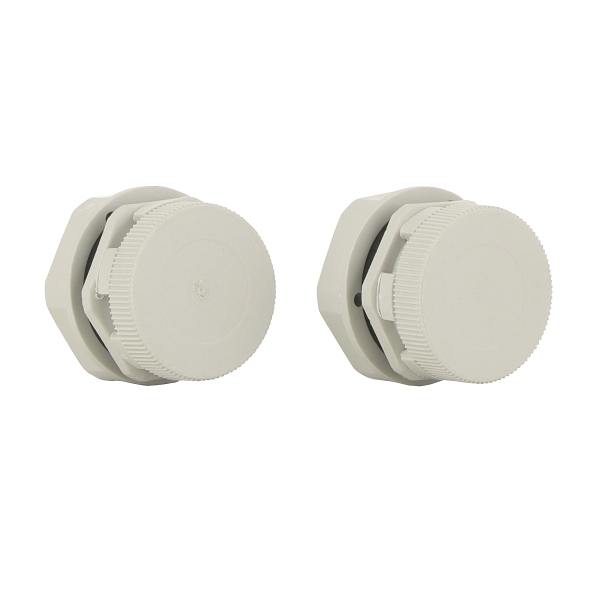

STEGO Pressure Compensation Device Plastic M40 IP66 and X9K Qty 2
Item No. DA28400
Product Range: Pressure Compensation / Drainage
Component Type (ETIM Class)
Condensate drain (enclosure/cabinet)
Construction
Air permeability1200 l/h
MaterialPlastic
Degree of protection (IP)IP66/IP67/IP69K
ColourLight grey
Mechanical
Thread sizeM40 x 1.5
Nominal tightening torque5 Nm
Max. tightening torque10 Nm
Dimensions
Diameter mounting hole40.5 mm
Weight0.45 kg
Depth37 mm
Diameter drain40 mm
Environment
Operating temperature-35-70 °C
Storage temperature-35-70 °C
