Allen-Bradley

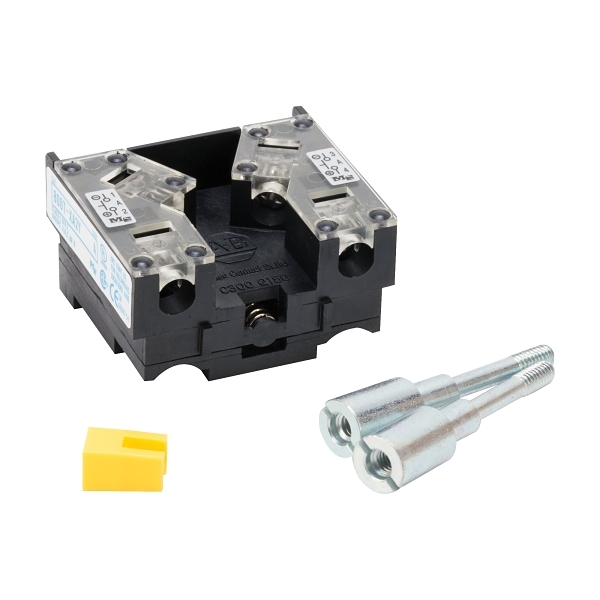

Allen-Bradley 800T Contact Block Stackable Sealed Switch 1 N.C. 1 N.O. Contact for 30.5mm Pushbutton
Item No. 800TXAY
Product Range: 800T/H Pushbutton
Component Type (ETIM Class)
Auxiliary contact block
Electrical
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Rated insulation voltage Ui300 V
Rated operation current Ie at 40 °C Tu5 A
Rated operation current Ie at AC-15, 120 V3 A
Rated operation current Ie at AC-15, 240 V1.5 A
Rated operation current Ie at DC-13, 24 V2.5 A
Rated operation current Ie at DC-13, 125 V0.55 A
Min. contact rating current10 mA
