nVent ERIFLEX

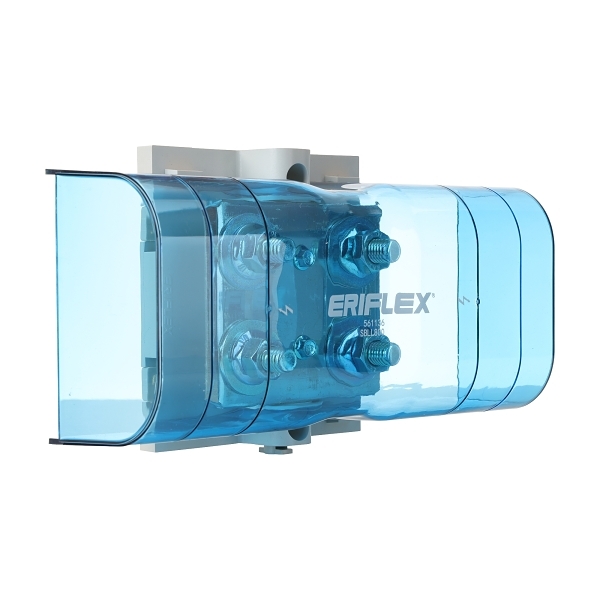

nVent ERIFLEX High Current Terminal 670A In 1 x 95 to 240mm Out 2 x 35 to 120mm AL
Item No. 561166
Product Range: High Current Terminal
Component Type (ETIM Class)
Distributor assembly terminal blocks
Electrical
Number of poles1
Rated insulation voltage Ui1000 V
Short time withstand current Icw, 1 sec28.8 kA
Max. rated current670 A
Construction
Conductor materialAluminium/copper
With PE-railNo
With N-railNo
Dimensions
Conductor cross section flexible (fine-strand) with cable end sleeve120-35 mm²
Conductor cross section solid (solid, stranded)35-120 mm²
Height146.4 mm
Width41.5 mm
Depth82.2 mm
