Socomec

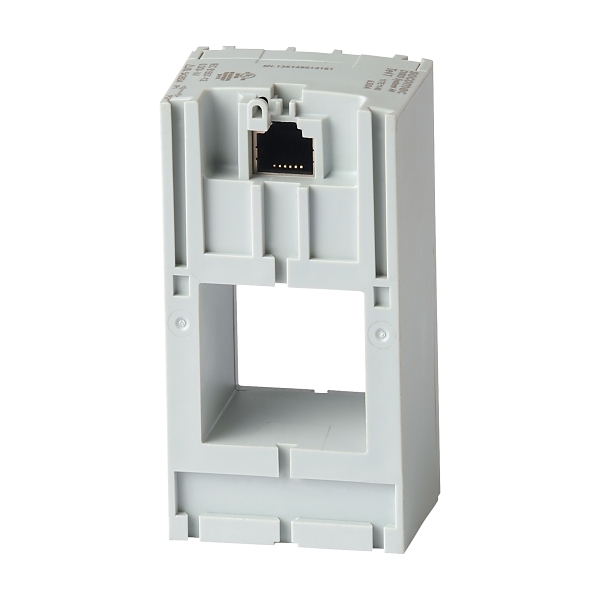

Socomec TE-45 Solid Core CT 160-630A 31 x 31mm Holes 45mm Centres for Digiware and DIRIS A-xx
Item No. 48290504
Product Range: TE Solid Core
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current630 A
Secondary current on CT0.1 A
Rated operating frequency50-60 Hz
Max. operating voltage (Umax)300 V
Rated short time thermal current Ith (x primary current)6.3 kA
Accuracy class0.2S
Over current limiting factorFS 10
Secondary rated apparent power0.1 VA
CalibratedYes
Construction
Current transformer typeSolid core
Material housingPlastic
ModelThrough-feed current converter
With shock protectionYes
Snap mountingYes
With copper railYes
Secondary connectionPlug-in connection
Number of primary inputs1
Dimensions
Opening diameter31 mm
Height opening31-31 mm
Width opening31-31 mm
Environment
Storage temperature-25-85 °C
