Allen-Bradley

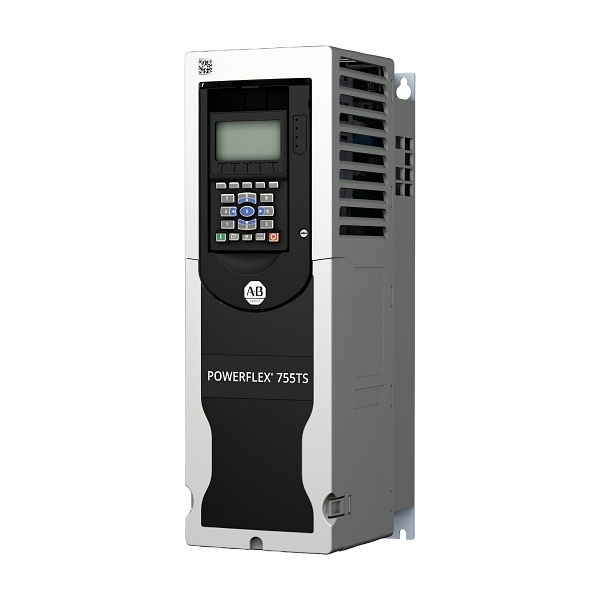

Allen-Bradley PowerFlex 755TS VSD 480V IP20 8A 5HP ND/HD Frame 2
Item No. 20G21FD8P0JA0NNNNN
Product Range: PowerFlex 755T
Component Type (ETIM Class)
Frequency converter =< 1 kV
Electrical
Number of phases input3
Nominal input voltage480 V
Nominal output power AC3.7 kW
Nominal output current I2N8 A
kW rating, normal duty3.7 kW
kW rating, heavy duty3.7 kW
Dynamic braking transistorYes
Control characteristicPID
EMC-versionYes
Communication
Integrated motion functionNo
Construction
Suitable for safety functionsYes
Contains keypadYes
Frame size2
Degree of protection (IP)IP20
Degree of protection (NEMA)4X
Dimensions
Height481.8 mm
Width206.2 mm
Depth212 mm
Weight8 kg
Environment
Operating temperature-20-60 °C
Storage temperature-40-70 °C
