Allen-Bradley

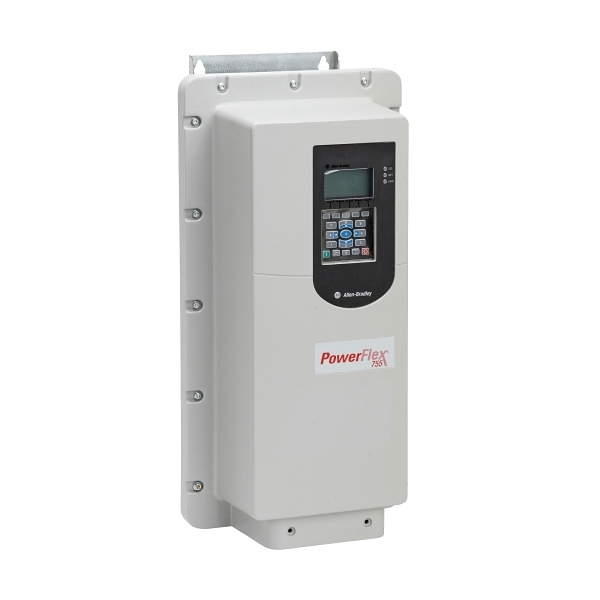

Allen-Bradley PowerFlex 755 VSD 400V IP54 ND 22A 11kW or HD 15.4A 7.5kW Frame 2
Item No. 20G11GC022JA0NNNNN
Product Range: PowerFlex 755
Component Type (ETIM Class)
Frequency converter =< 1 kV
Electrical
Number of phases input3
Nominal input voltage400 V
Nominal output power AC11 kW
Nominal output current I2N22 A
kW rating, normal duty11 kW
kW rating, heavy duty7.5 kW
Dynamic braking transistorYes
Control characteristicPID
EMC-versionYes
Communication
Integrated motion functionNo
Construction
Suitable for safety functionsYes
Contains keypadNo
Frame size2
Degree of protection (IP)IP54
Degree of protection (NEMA)12
Dimensions
Height543.2 mm
Width216.5 mm
Depth225.6 mm
Weight8 kg
Environment
Operating temperature-20-60 °C
Storage temperature-40-70 °C
