Allen-Bradley

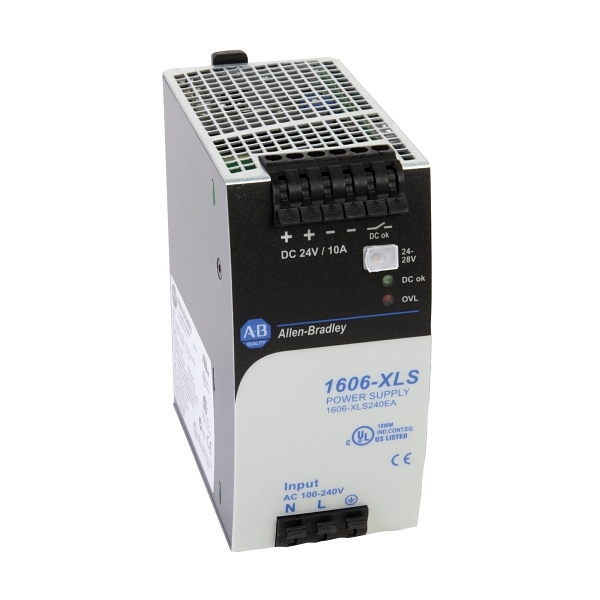

Allen-Bradley 1606 Power Supply HP 1Phase 100 to 240V AC to 24 to 28V DC 240W 10A
Item No. 1606XLS240E
Product Range: 1606
Component Type (ETIM Class)
DC-power supply
Electrical
Voltage type of supply voltageAC/DC
Rated supply voltage at AC 50 Hz100-240 V
Rated supply voltage at DC110-300 V
Frequency50-60 Hz
Nominal current (In)1.2 A
Max. starting current7 A
1st secondary output voltage24-28 V
Max. output current 110 A
Nominal value output current 110 A
Construction
Rail mounting possibleYes
Wall mounting possibleYes
Degree of protection (IP)IP20
Direct mounting possibleNo
Degree of protection (NEMA)Other
Dimensions
Width60 mm
Height124 mm
Depth117 mm
Weight0.9 kg
Environment
Operating temperature-25-70 °C
StabilizedYes
