Allen-Bradley

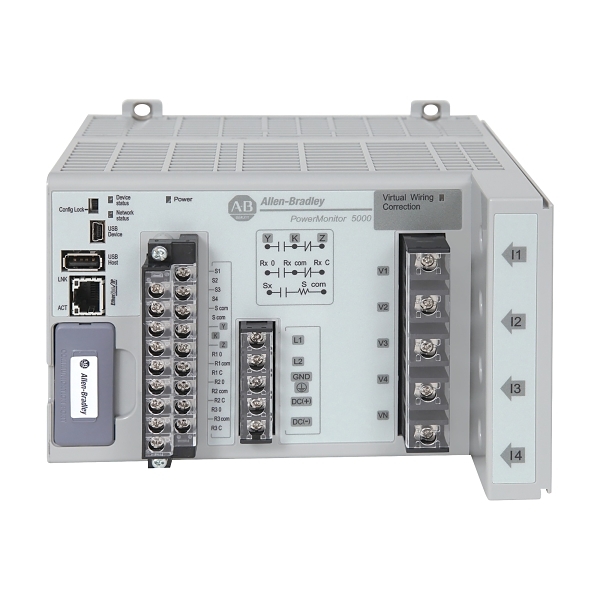

Allen-Bradley PM5000 M5 Power Quality Base Meter with ControlNet Comms
Item No. 1426M5ECNT
Product Range: Power Monitor 5000
Component Type (ETIM Class)
Power quality recorder
Electrical
Nominal voltage (Un) L-L26-144 V
Nominal voltage (Un) N-L15-660 V
Supply voltage AC 50 Hz120-240 V
Supply voltage AC 60 Hz120-240 V
Supply voltage DC22.8-25.2 V
Voltage type of supply voltageAC
Number of voltage measurement inputs4
Number of current measurement inputs4
Accuracy class reactive energy according to IEC 62053-23Not suitable
Communication
Configuration methodWeb-based
Data transfer via PQDifNo
Fault record transmission via COMTRADENo
Supporting protocol for IEC 61850 EthernetNo
Supporting protocol for OPC UA PubSubNo
Supporting protocol for PROFIBUSNo
Supporting protocol for ModbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for other bus systemsNo
Construction
Number of analogue inputs0
Number of analogue outputs0
Number of digital inputs0
Number of digital outputs0
Degree of protection (IP), front sideIP10
Terminal typeScrew
Mechanical
DisplayNone
Dimensions
Height132 mm
Width185 mm
Depth178 mm
Environment
Operating temperature-20-70 °C
Storage temperature-40-85 °C
Humidity typeNon-condensing
